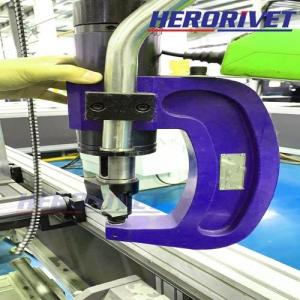

self piercing riveting gun machine for busbar

The press nozzle firstly moves downward to prepress the riveting material to prevent the riveting material from flowing into the die under the force of rivets, and then the punch moves downward to push the rivet through the upper material.

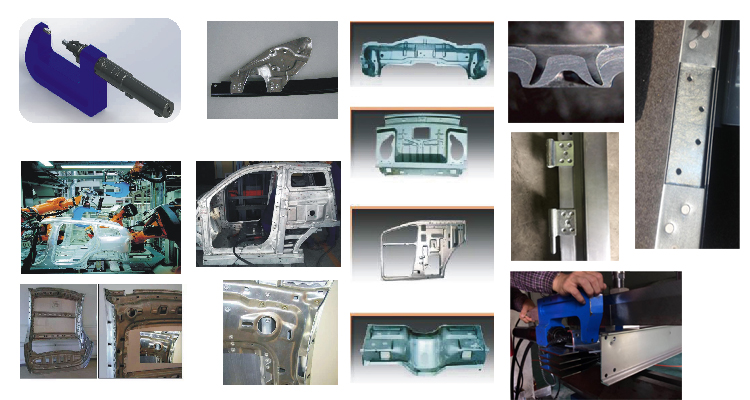

Self-piercing riveting.

Combination of different material with different thickness;

Combination of different hardness and different intensity;

Combination of interlay with structural adhesive;

Multilayer material combination.

Single process, efficient work;

Self-piercing riveting short time(≤3s)

It can realize automatic riveting;

Easy to integrated production process automation.

No process steps are necessary before and after riveting;
No dust, spark emission, good working environment;

Simple operation, low labor costs;

Safety operation, no additional environmental protection, labor insurance investment.

Ratchet type feeder, reduce rivets stuck; Can be flip over, center adjustable; can be fixed and moveable operation.

Ratchet type feeder, reduce rivets stuck; Can be flip over, center adjustable; weight:15KN.

Ratchet type feeder, reduce rivets stuck; Can be flip over, center adjustable; fixed operation.
